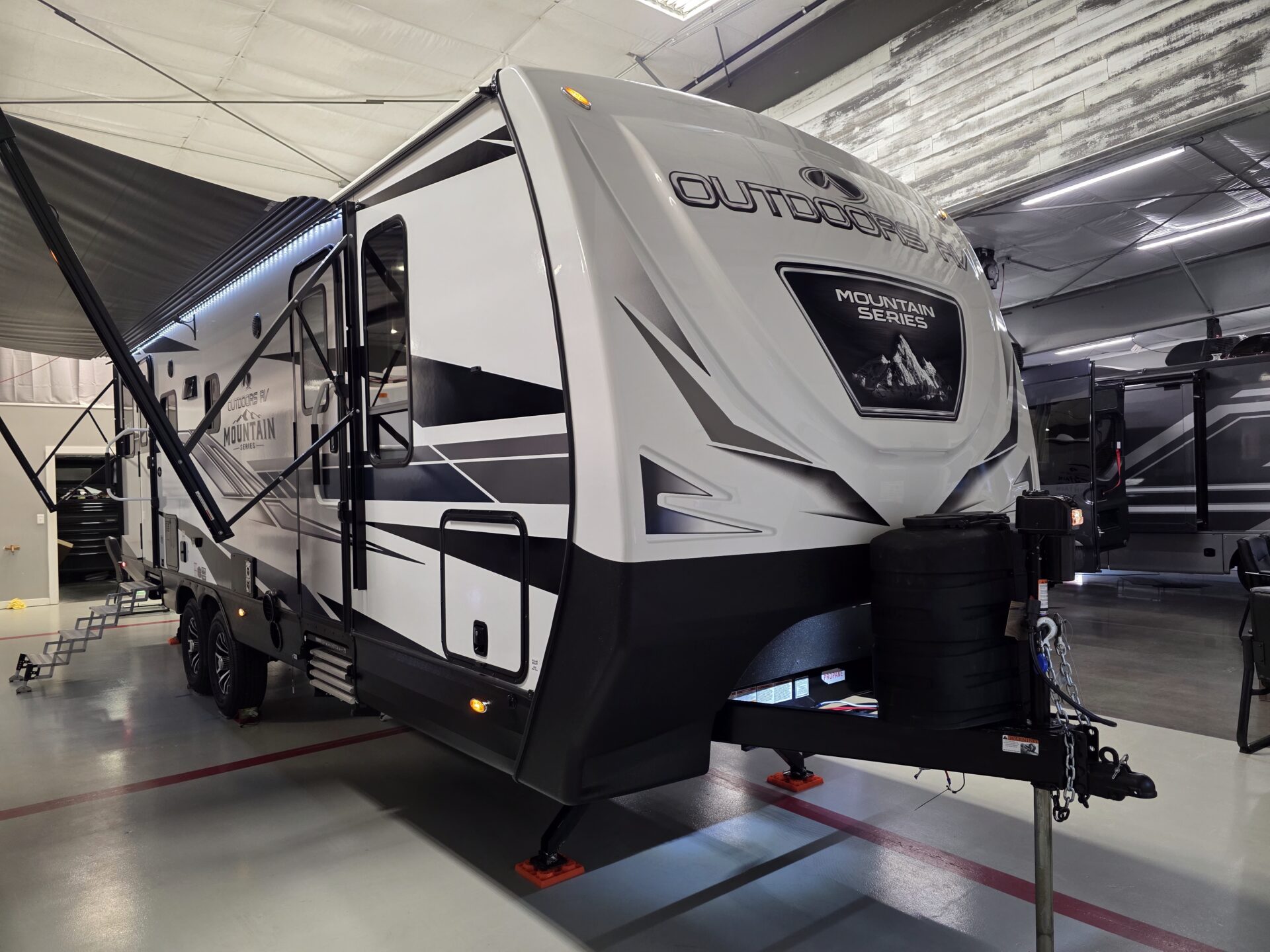

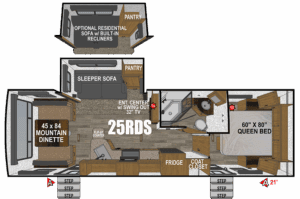

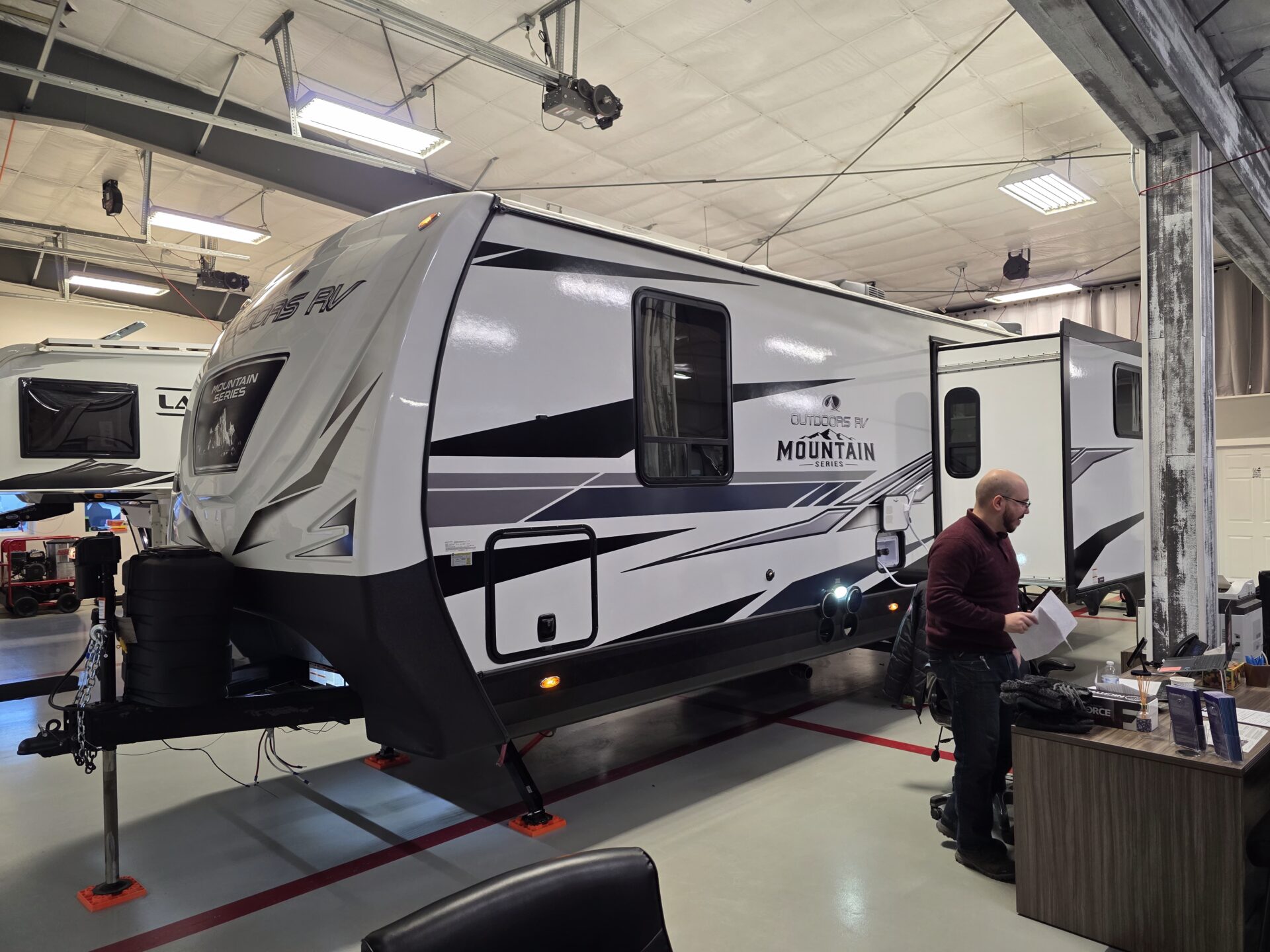

2026 Timber Ridge 25RDS Mountain Series

9,995 Lbs GVWR

7,322 Lbs Unloaded

842 Lbs Hitch Weight

Extra Large Holding Tanks For Extending Camping

80 Gallons Fresh

60 gallons Grey

40 Gallons Black

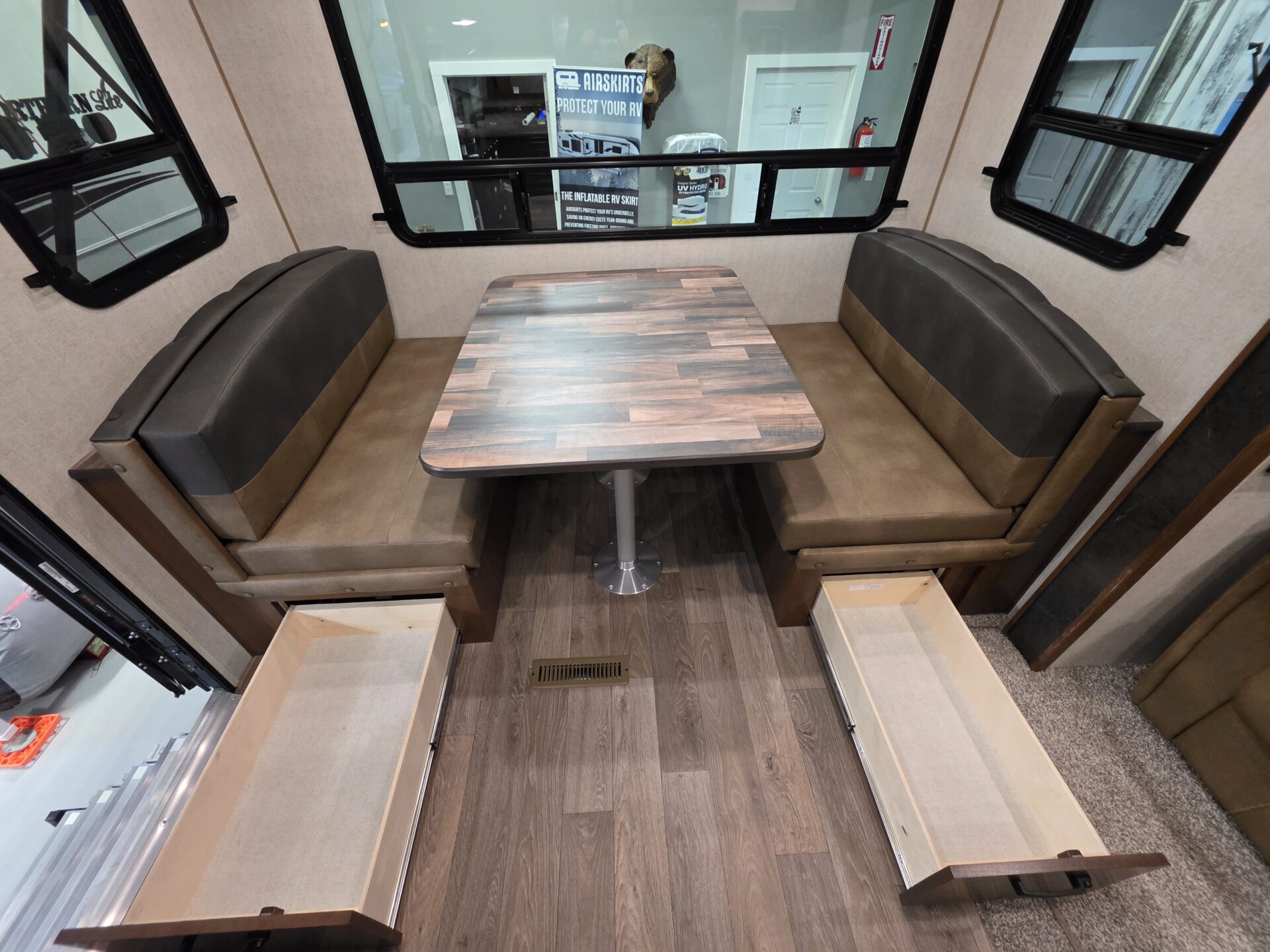

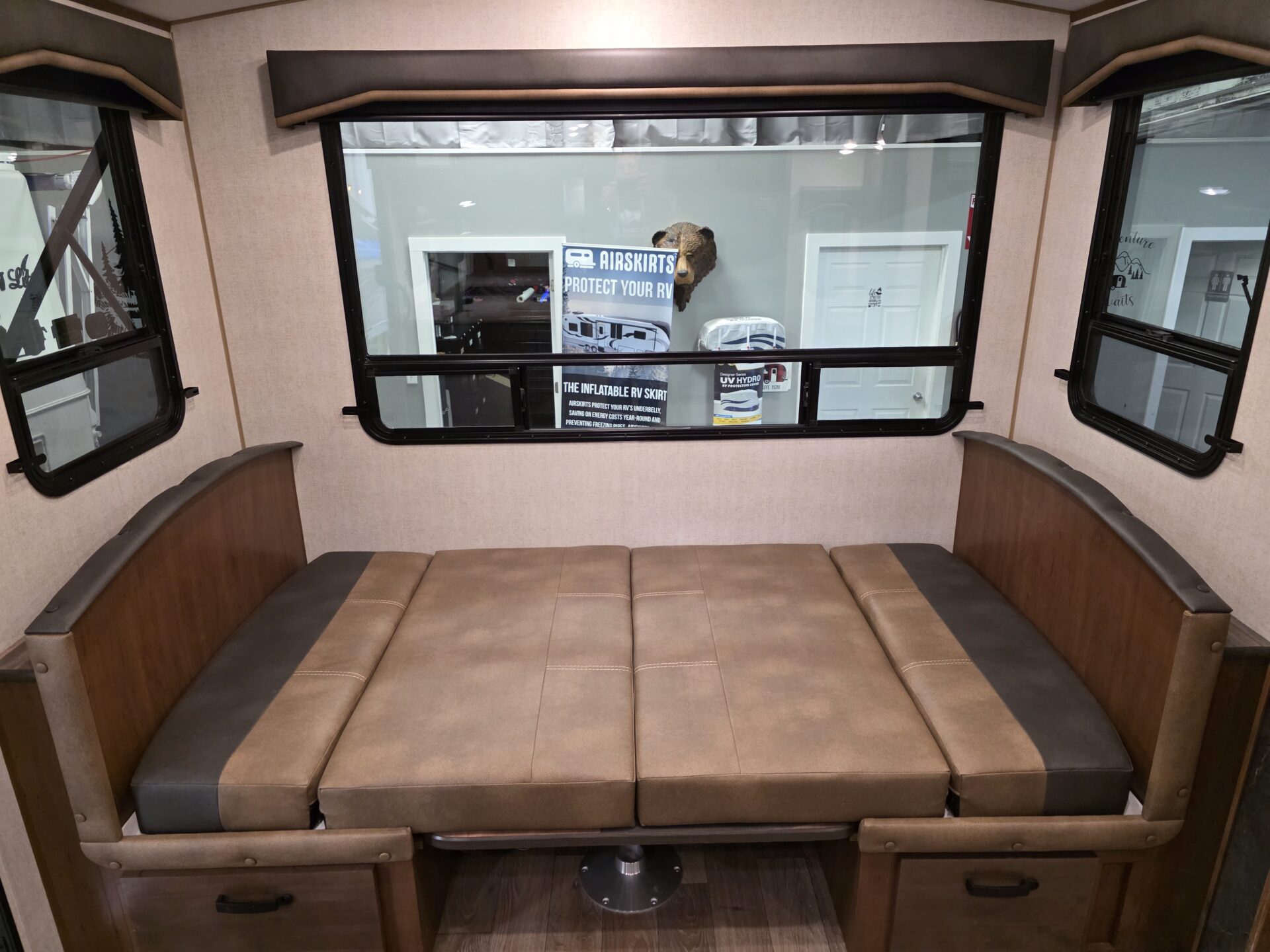

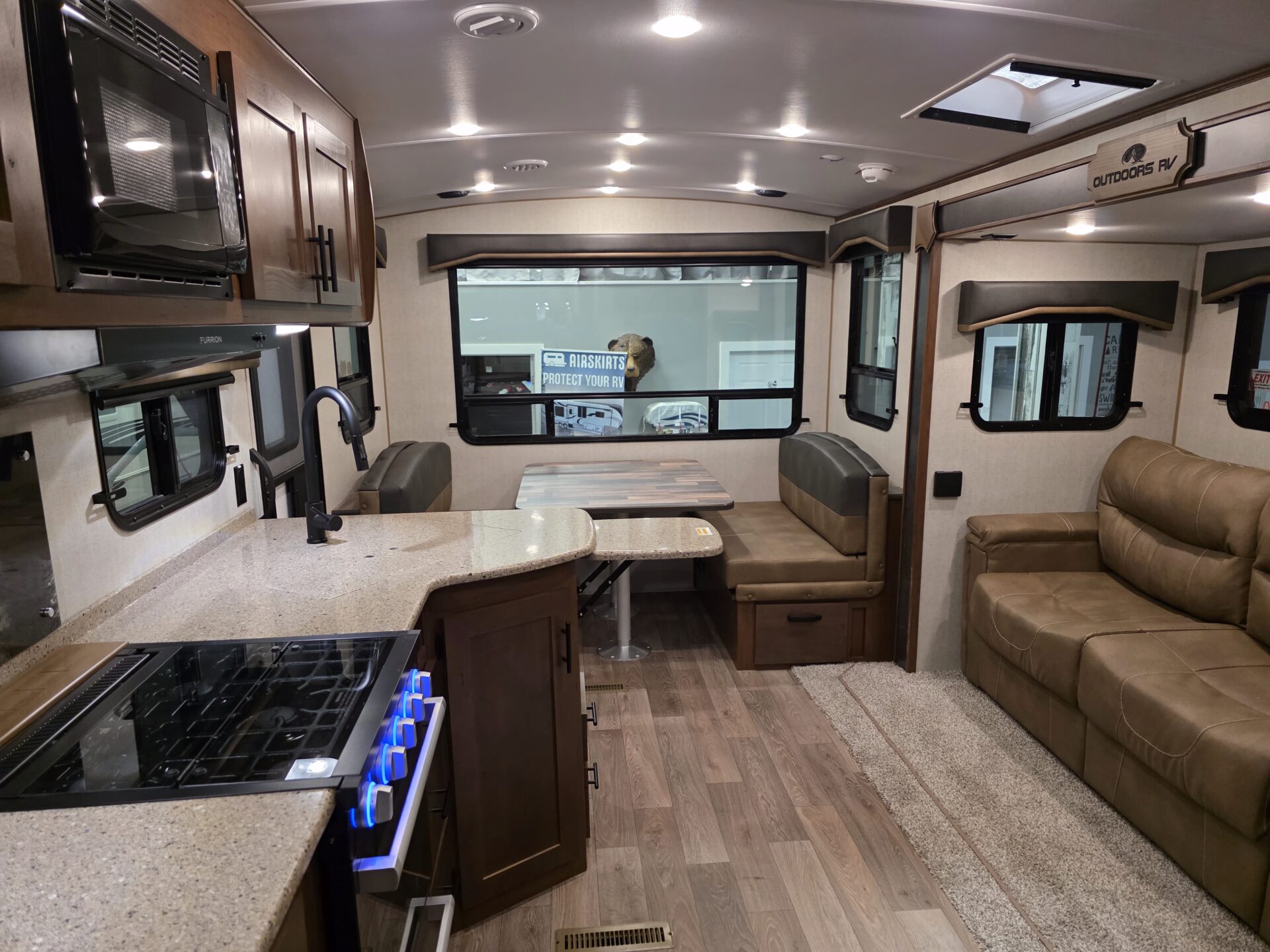

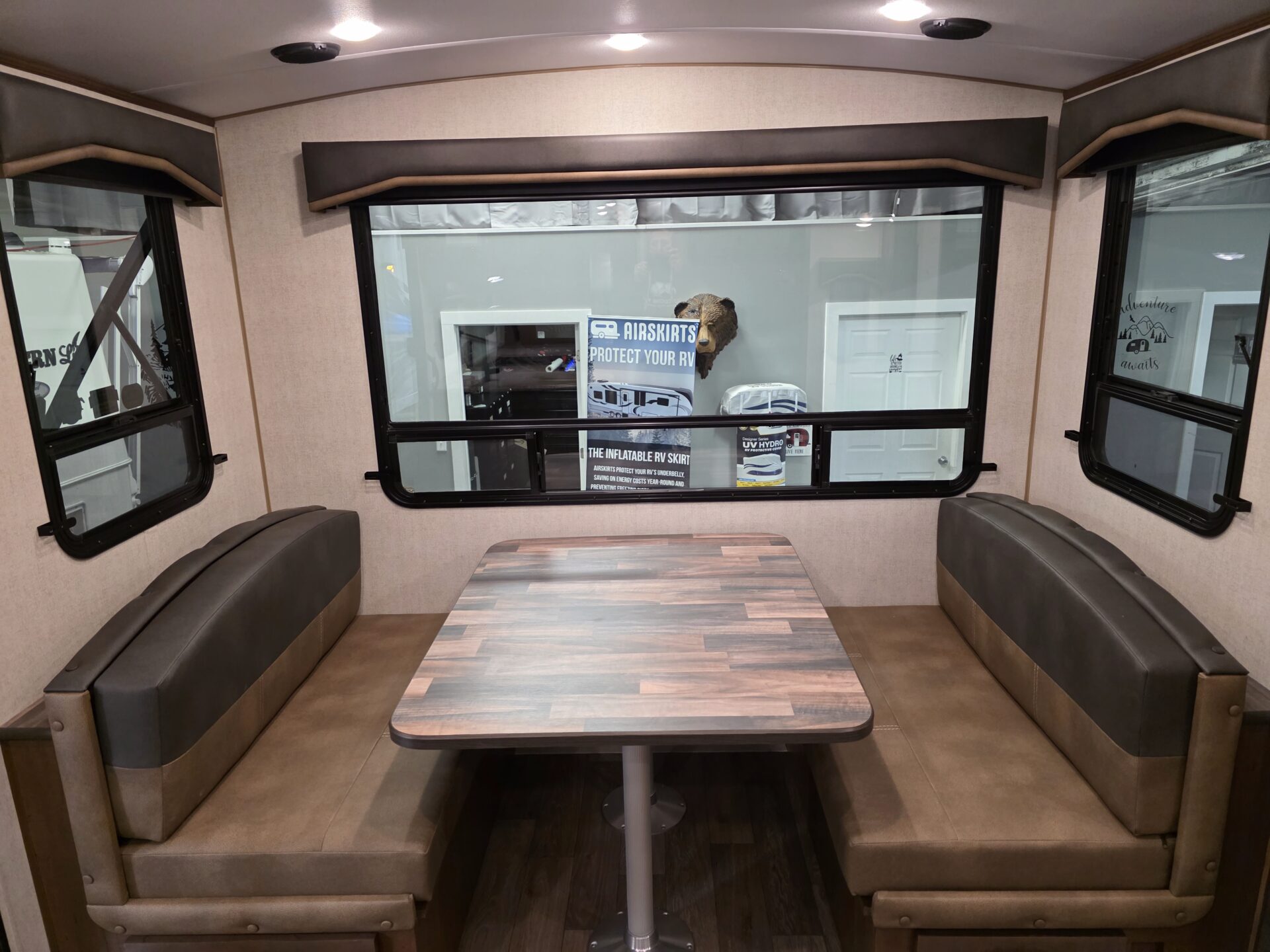

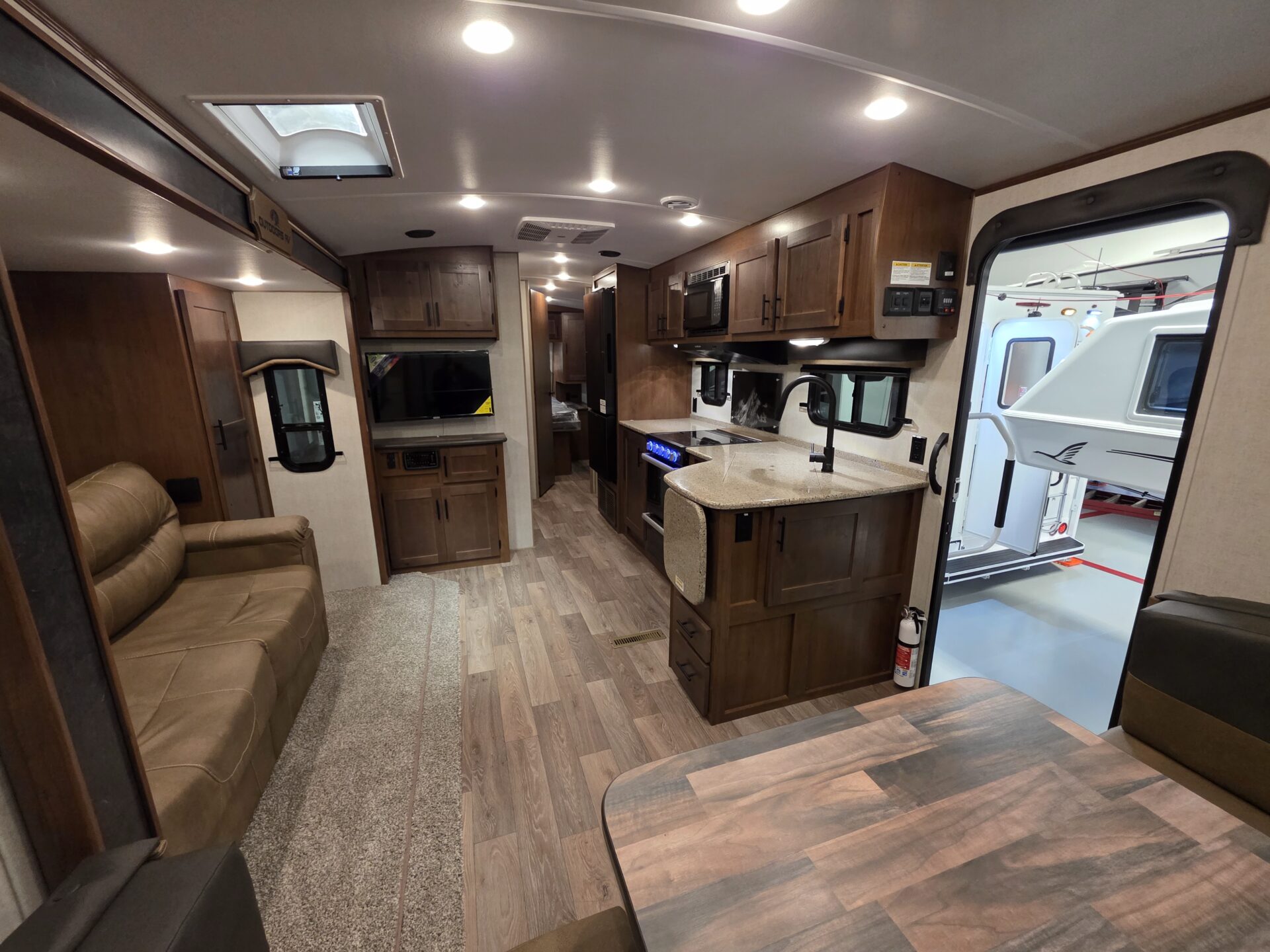

Large Rear Panoramic Windows and Extra Large Dinette That Converts Into A large Bed

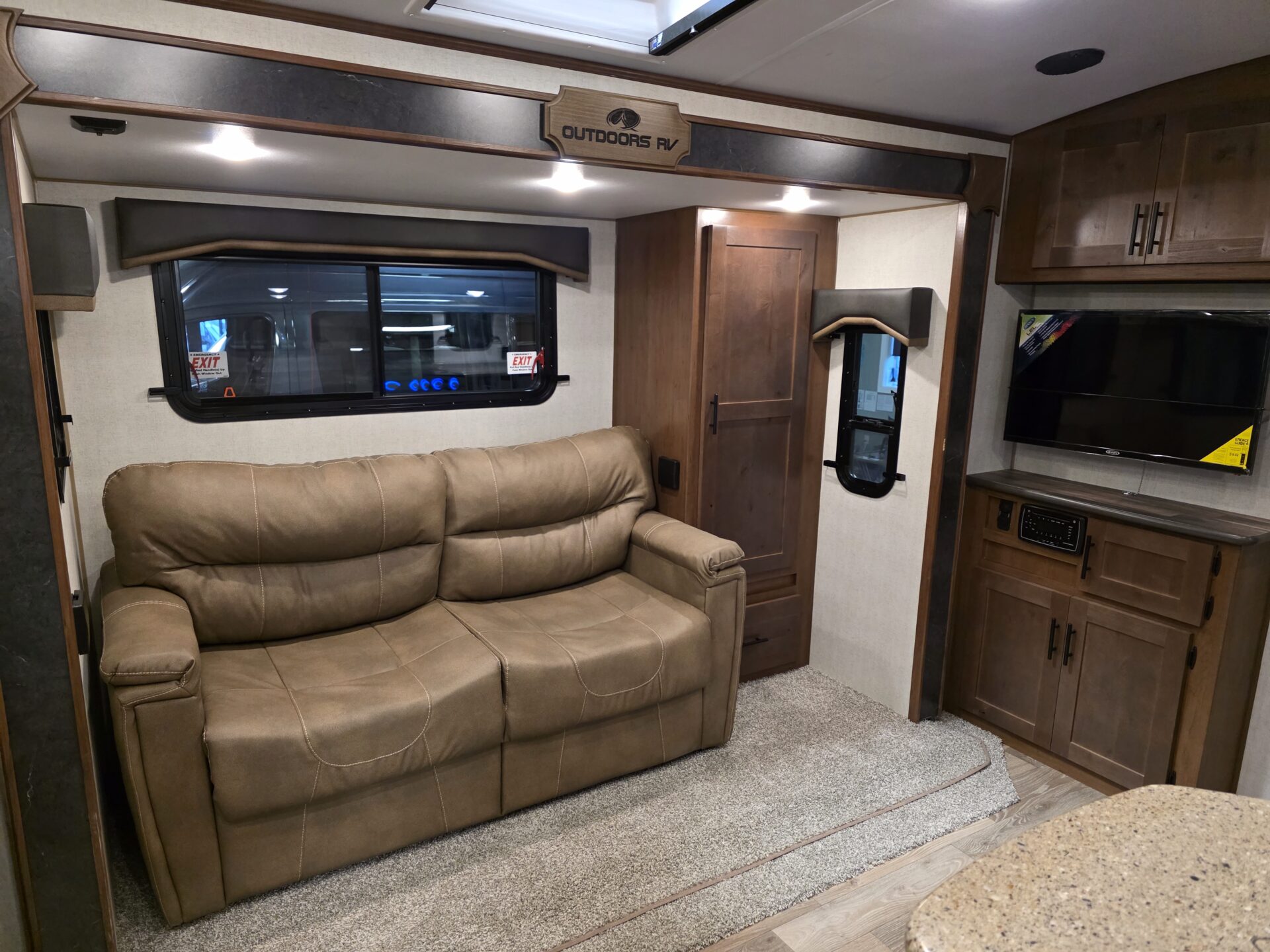

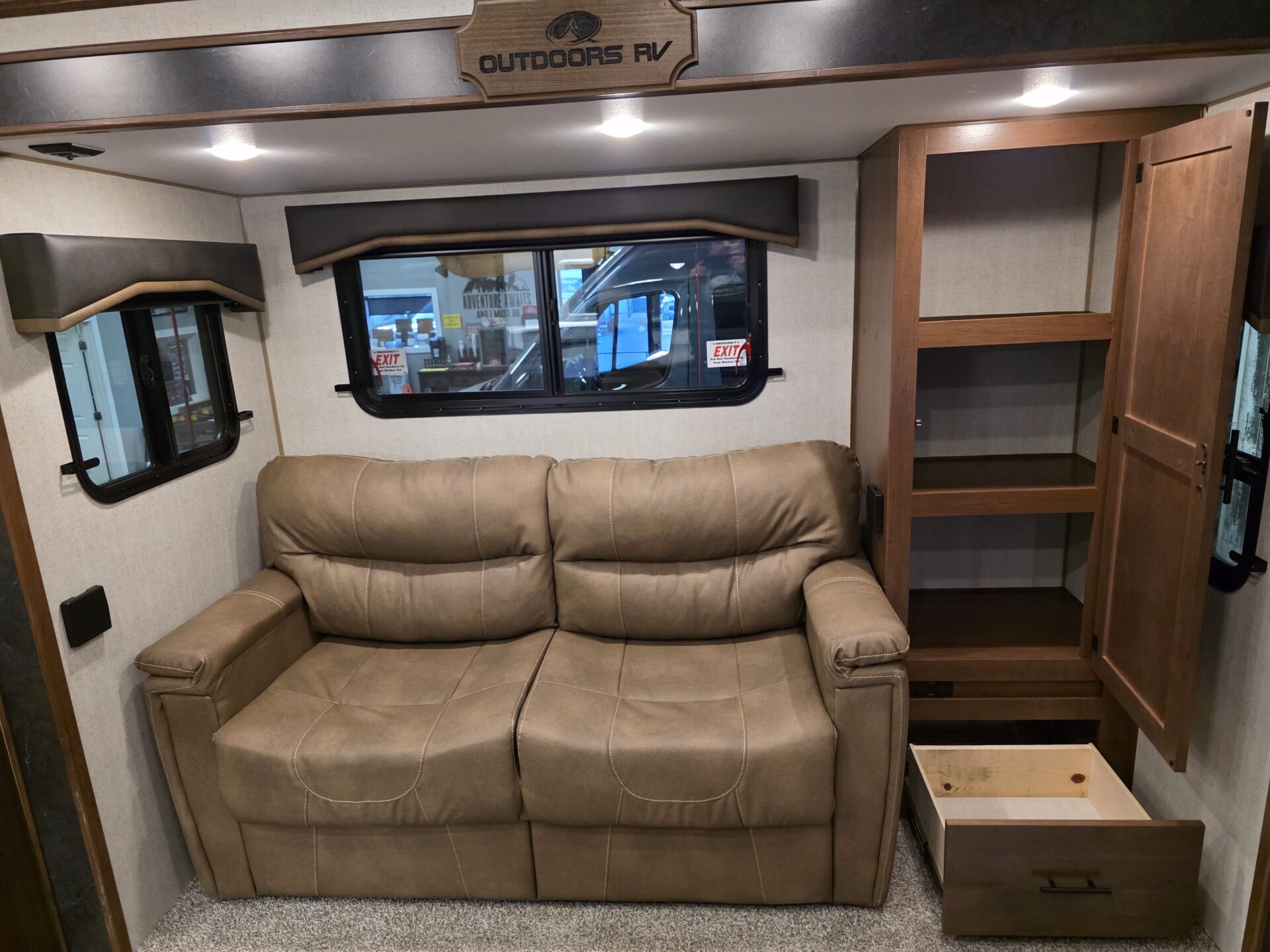

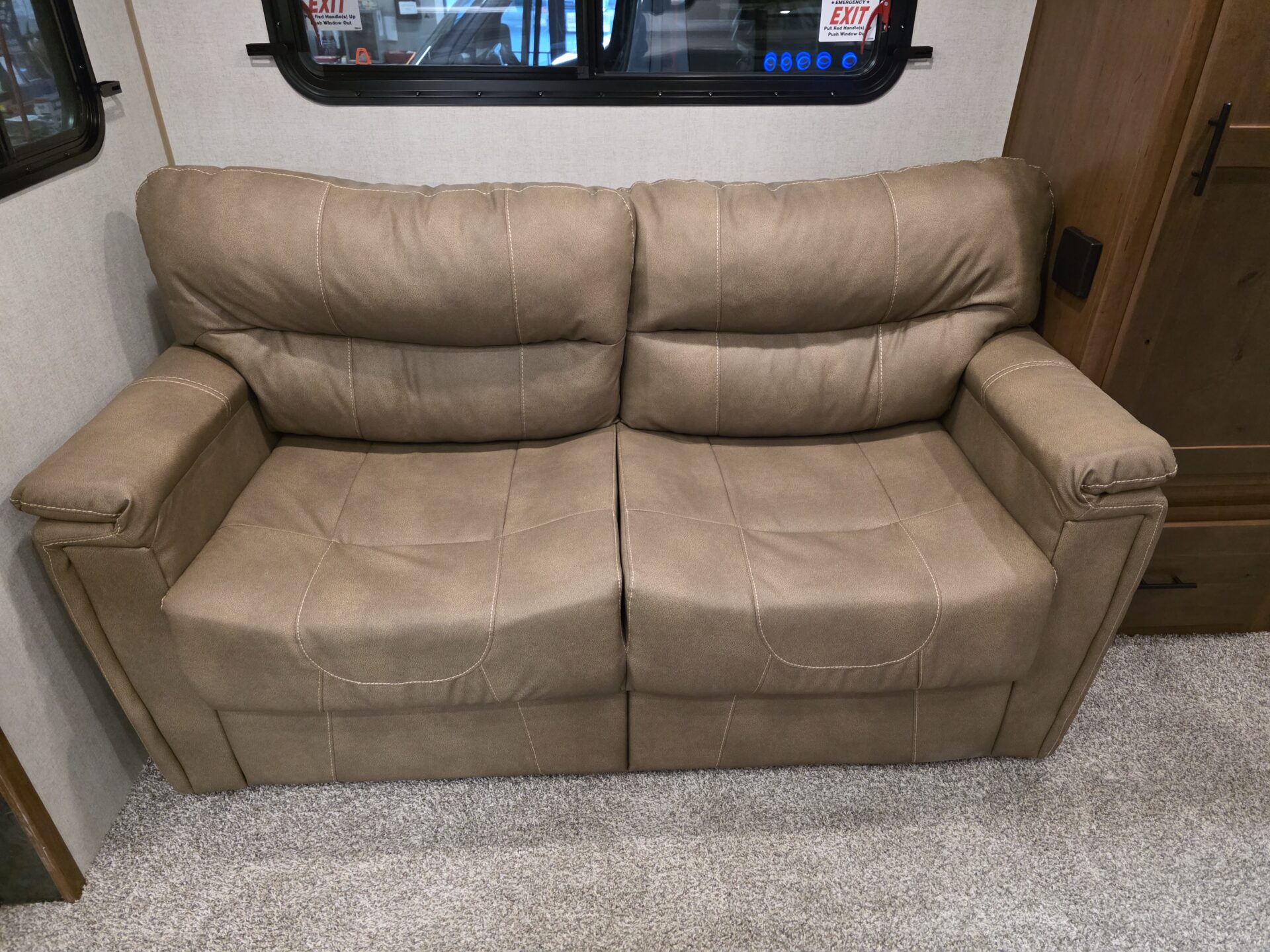

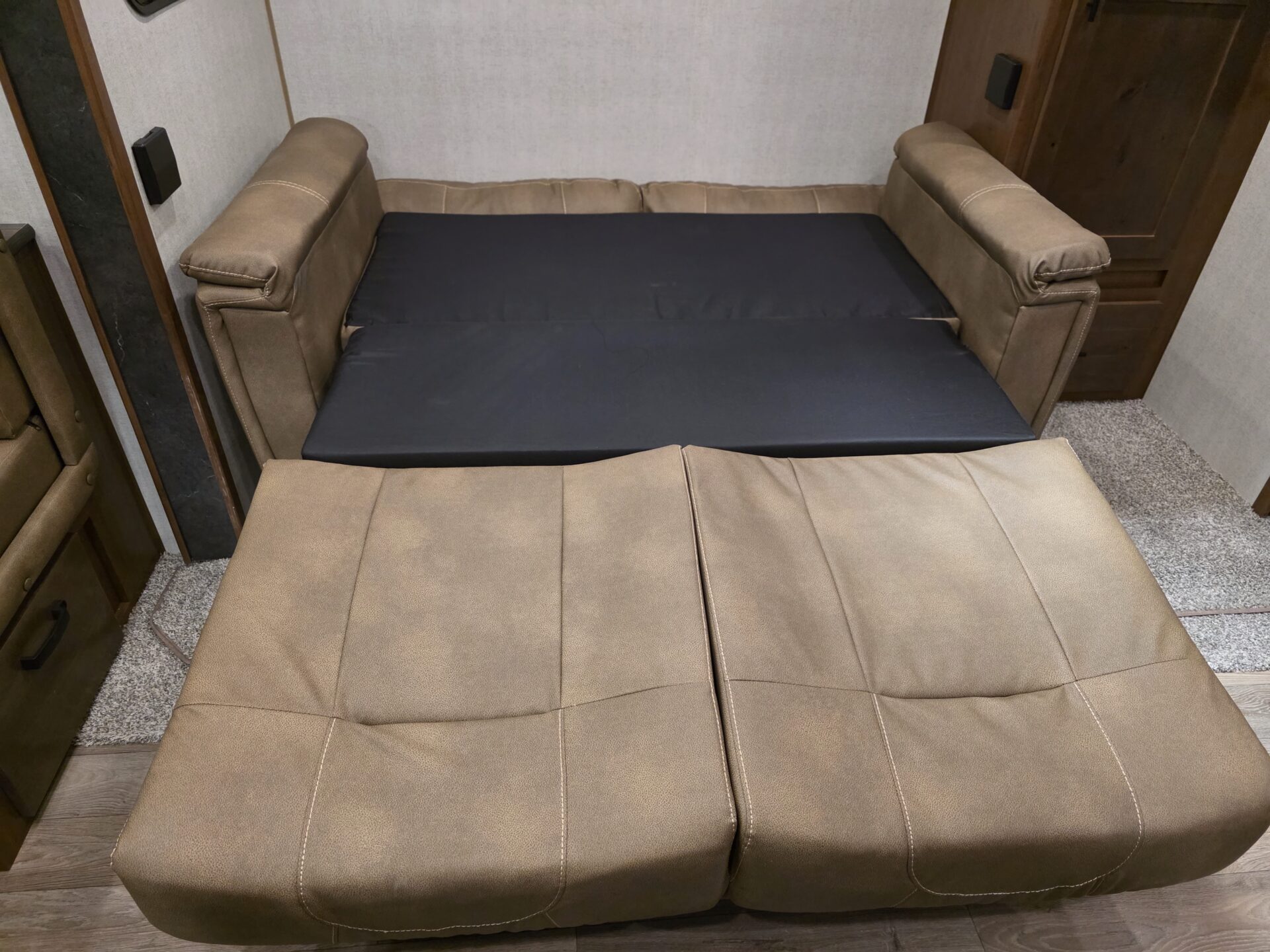

Thomas Payne Trifold Sleeper Sofa

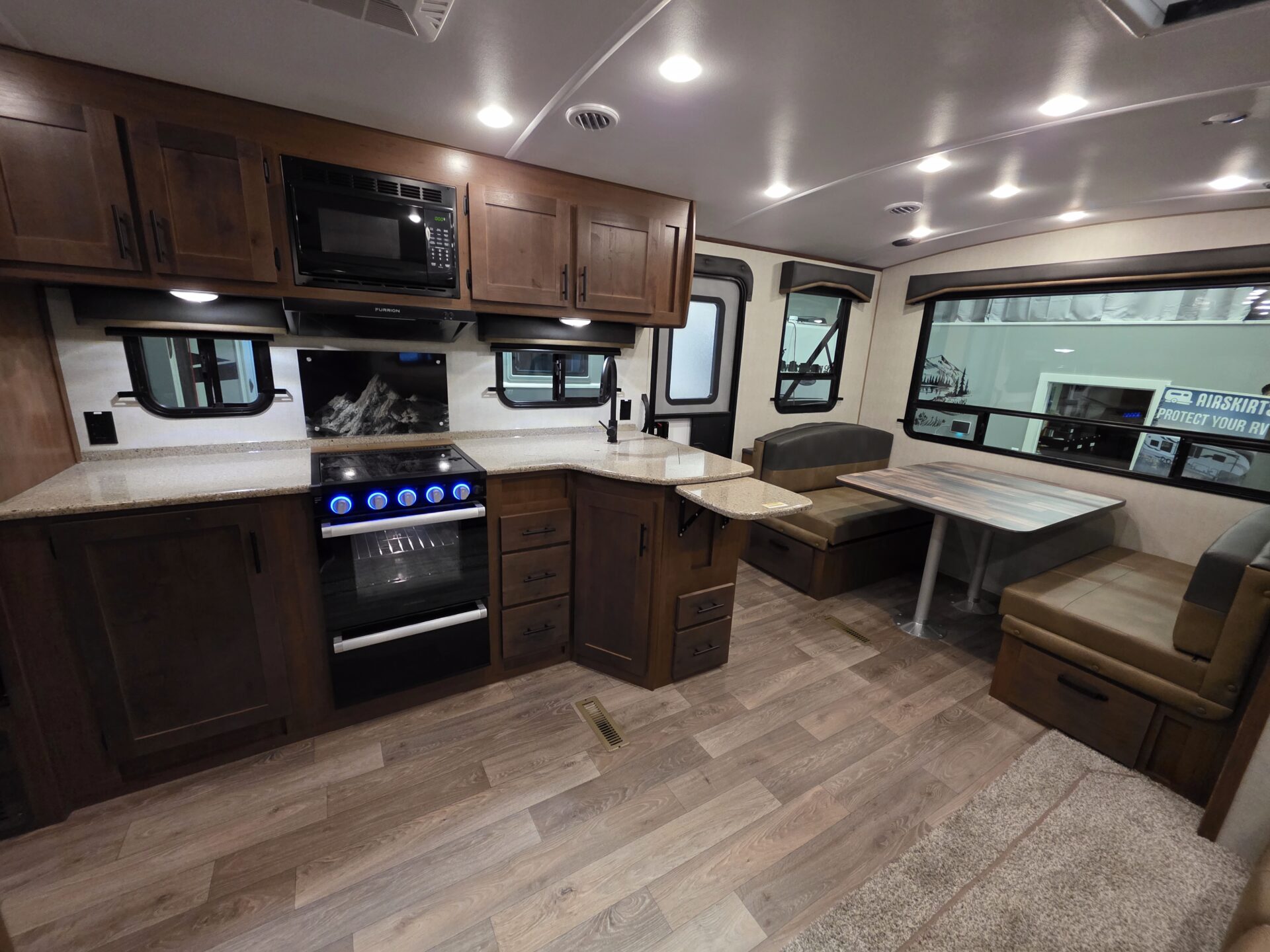

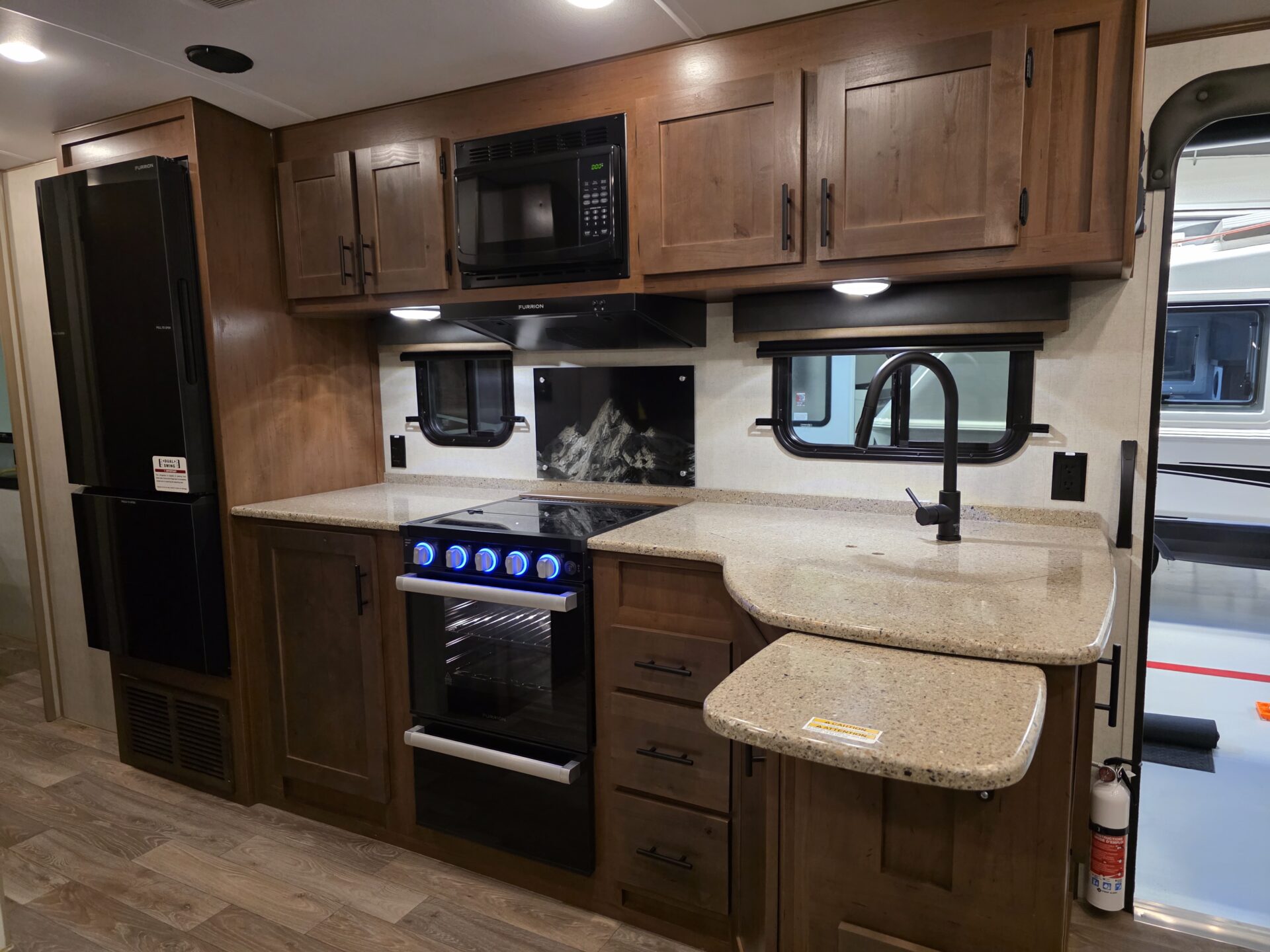

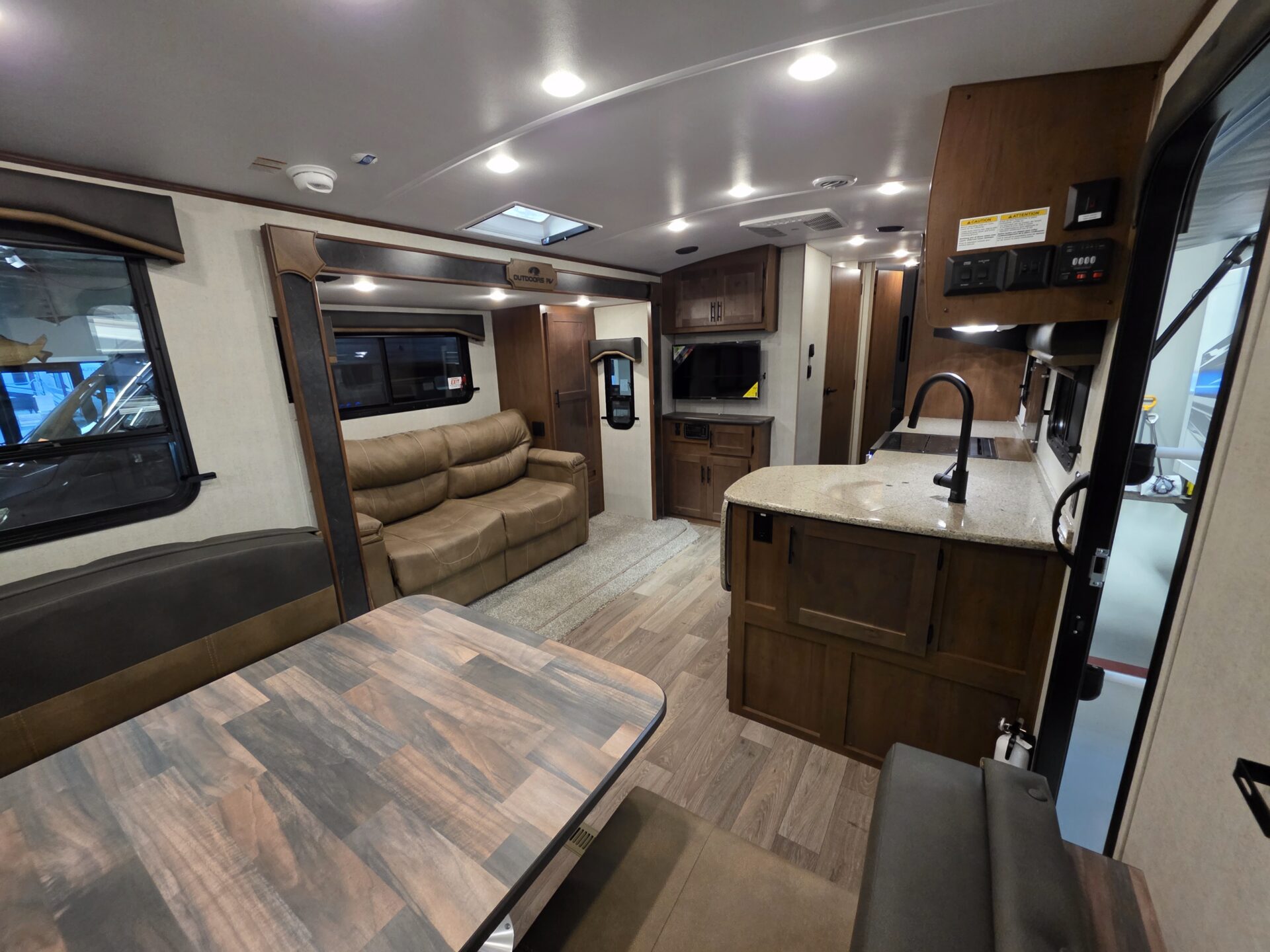

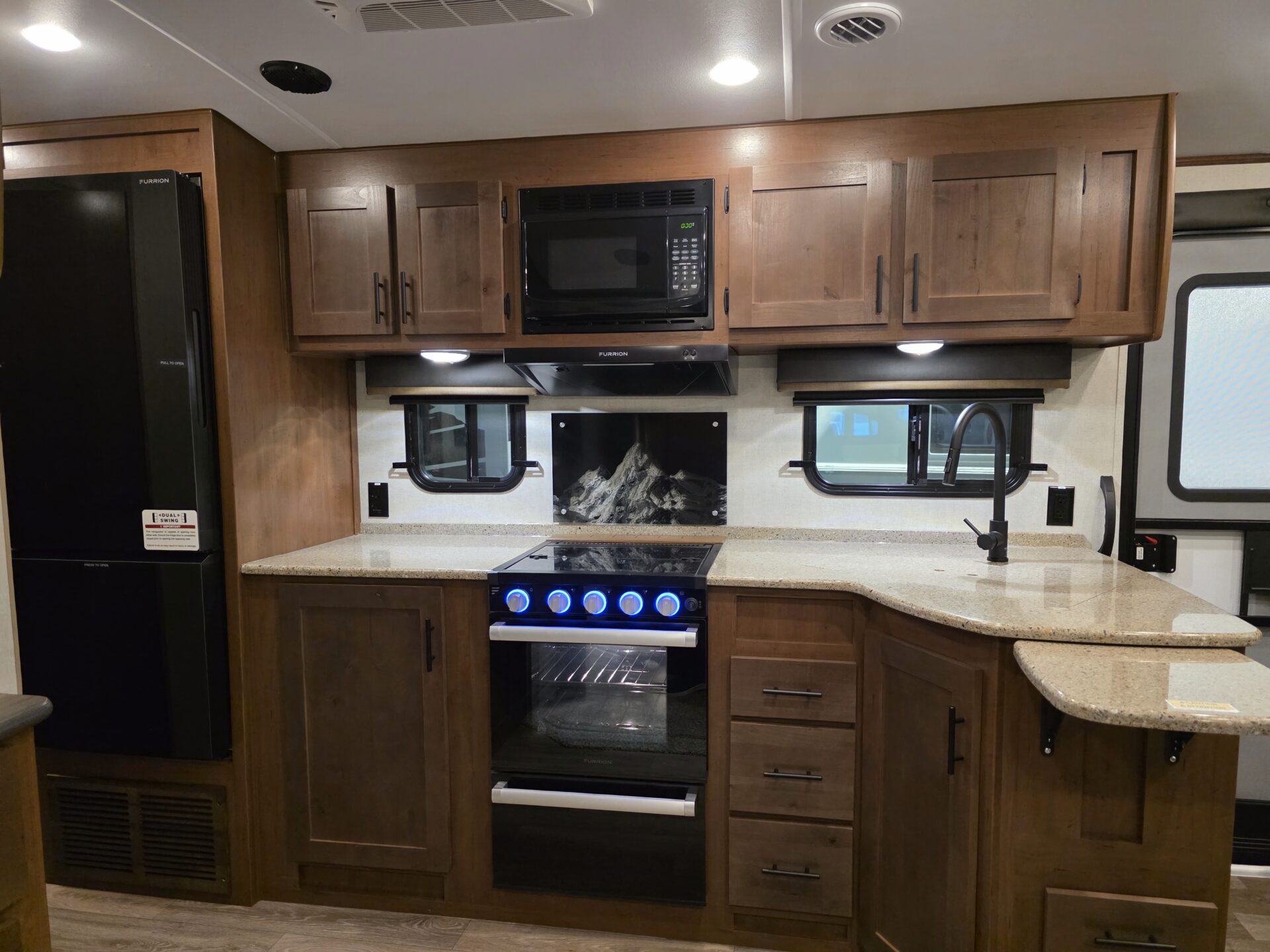

Great Amount Of Solid Surface Kitchen Countertops

Hard Alderwood Cabinets & Drawers

True Four Season Insulation :

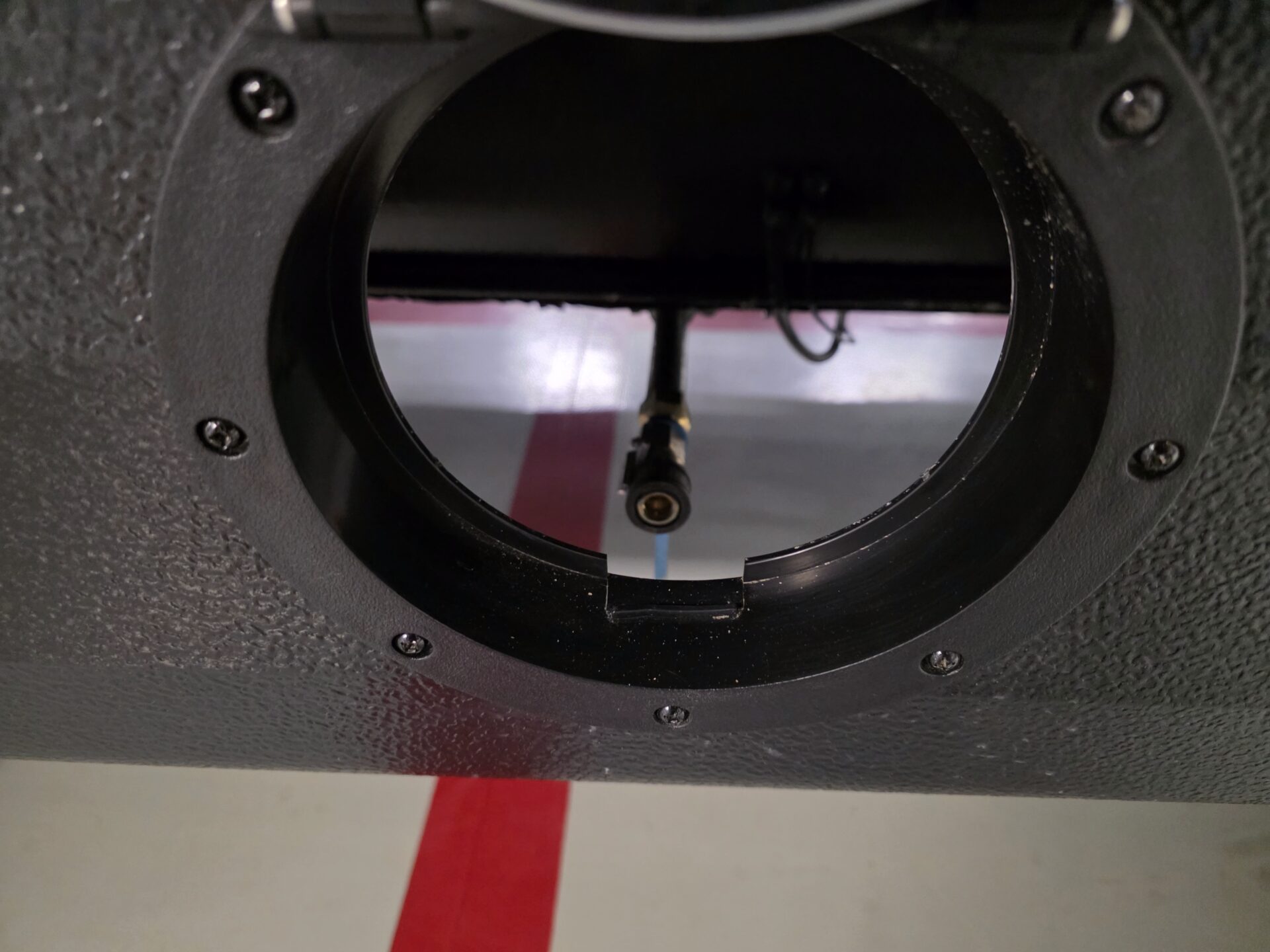

Fully Enclosed, Triple Insulated & Heated Holding Tanks With Rerouted Dump Valves Inside The Heated Under Belly With An Additional 12Volt Heat Pad On The Fresh Water Tank.

R-15 Astro Foil Insulation Under The Carpet On The Slides All Sitting On Top Of The Marine Grade Plywood Slide Floor, Sub Floor And The Roof That Also Has R-29 Insulation!

Pair All Of This With Dual Pane Mountain Extreme Thermal Windows And 2″ Vacuum Bonded Hard Fiberglass Walls

Now The Custom Built Off Road Chassis:

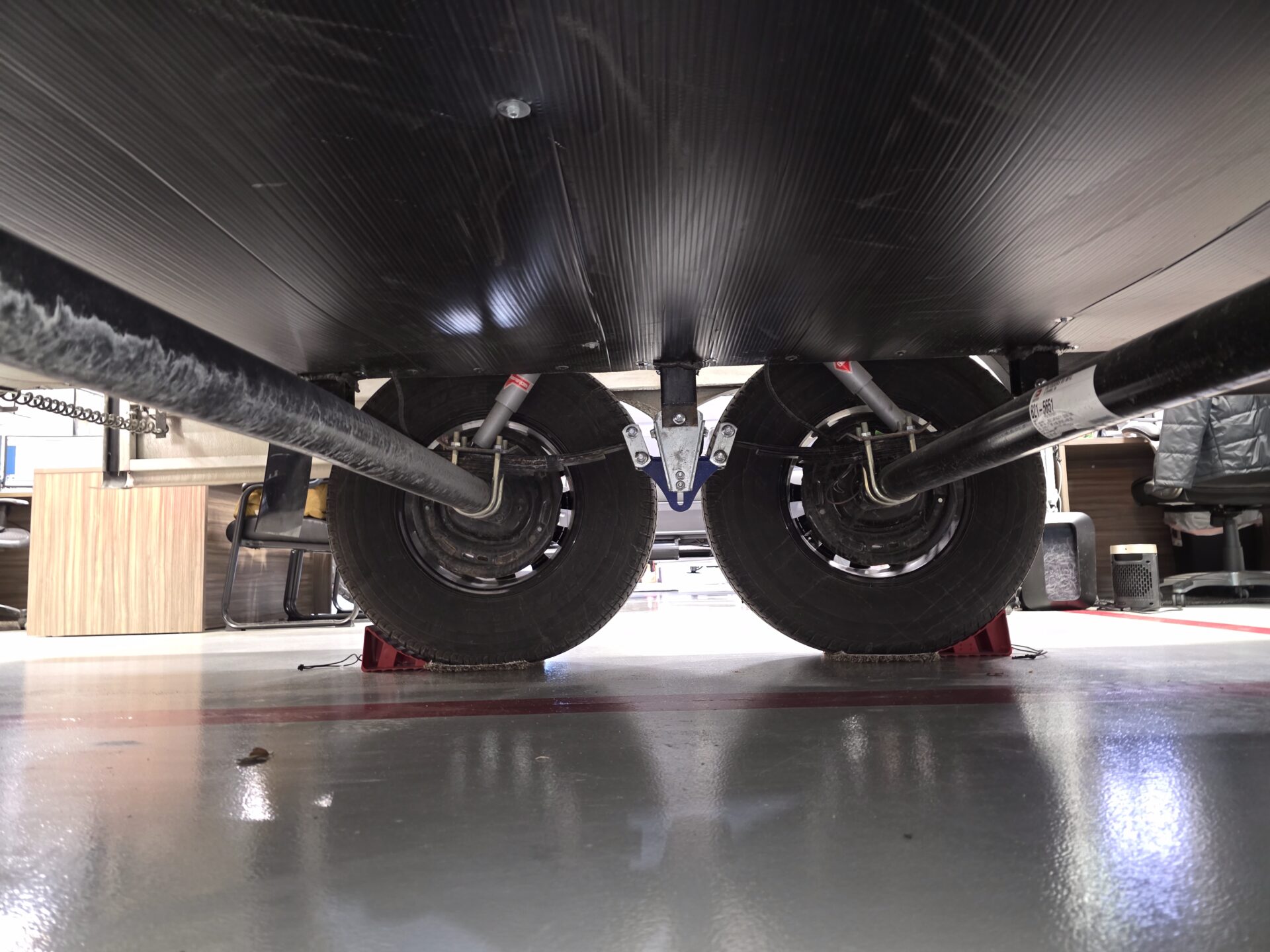

Designed Per Floor Plan With Beam By Beam Welded Construction, Axel & Holding Tank Placement, Cree 4000 Shackle Kit, 4 KYB Shock Absorbers & Good Year Endurance 10 Ply Tires Also Makes This The Smoothest Riding Trailer For Our Rough Alaskan Roads.

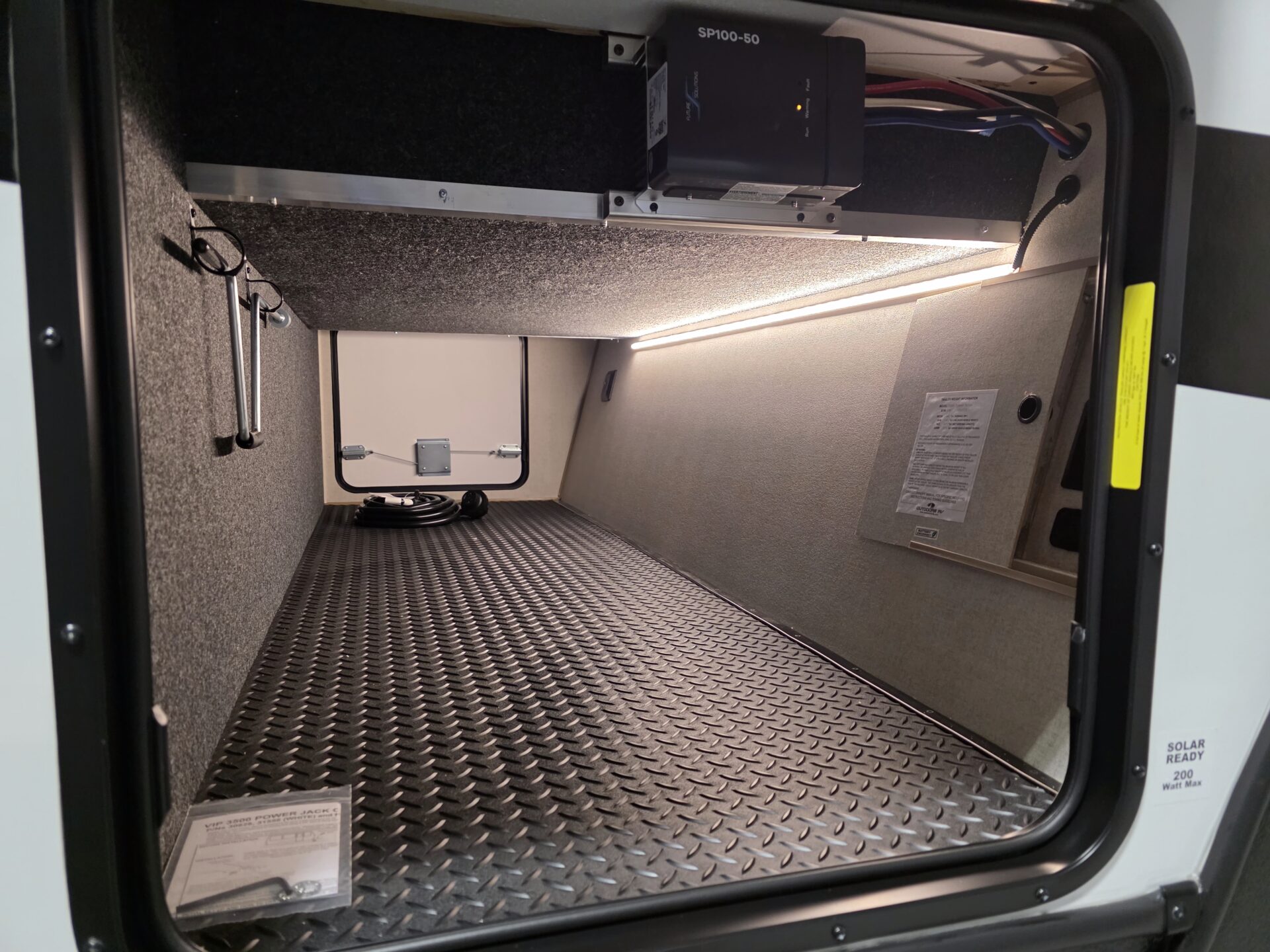

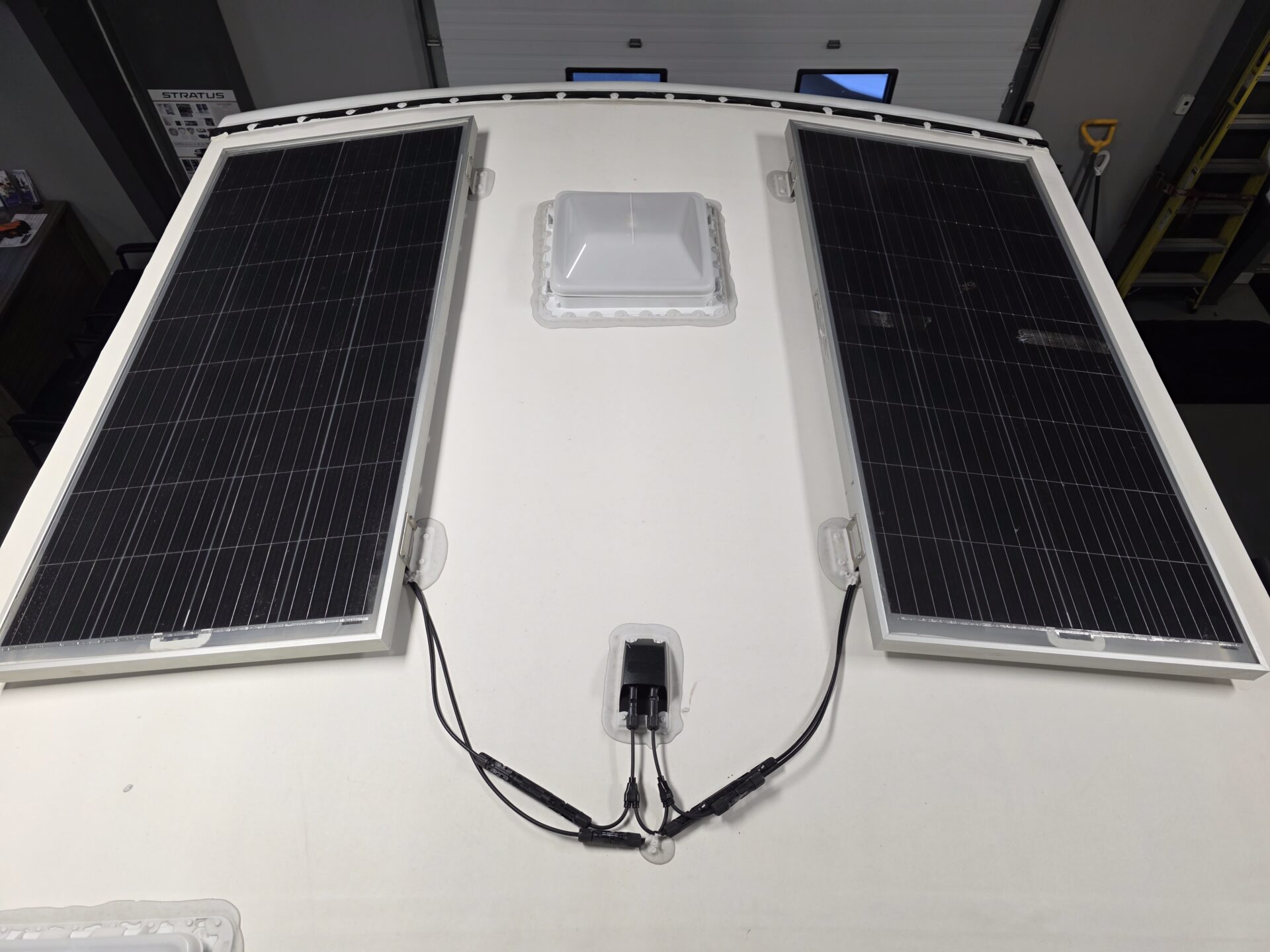

400 Watt Expandable Roof Top Solar System with a 30 AMP Solar Charge Controller To Soak Up all 18+ Hours Of Alaskan Sunshine!

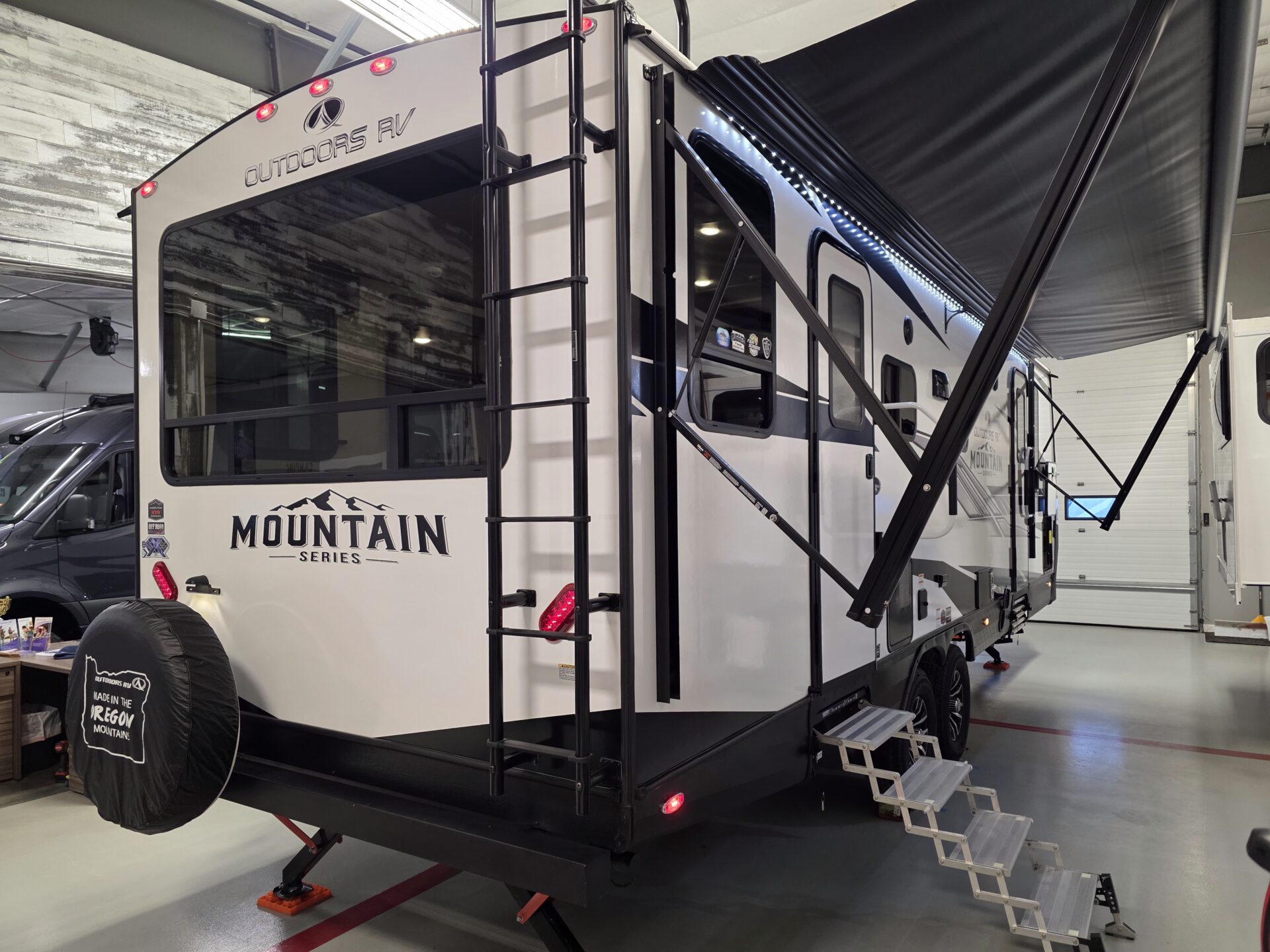

Mountain Series Standard Features

*Mountain Extreme Thermal Pane Windows
*Climate Designed – Four Seasons Camping
– Designed for Mountain States & Western Canada
*Triple Layered Four Seasons Roof Insulation
(Reflective Insulation Layer & Two Layers of R-7 Fiberglass Insulation)
*Fully Enclosed-Heated-Insulated Underbelly
*1″ Thick Thermal Insulated Luggage Doors
*Reflective Insulation Layer Roof, Slide-Out Floor, Entire Underbelly, Holding Tanks
*Thermal Insulated Bedroom Ceiling Vent
*XL Furnace for Extreme Camping Heat System
*Exterior Shower Protected by 1″ Thick Thermal Insulated Door
*1.2.3 Built Outdoors Tough Warranty
*Rugged 2″ Bonded Aluminum Frame Walls (Every Wall)

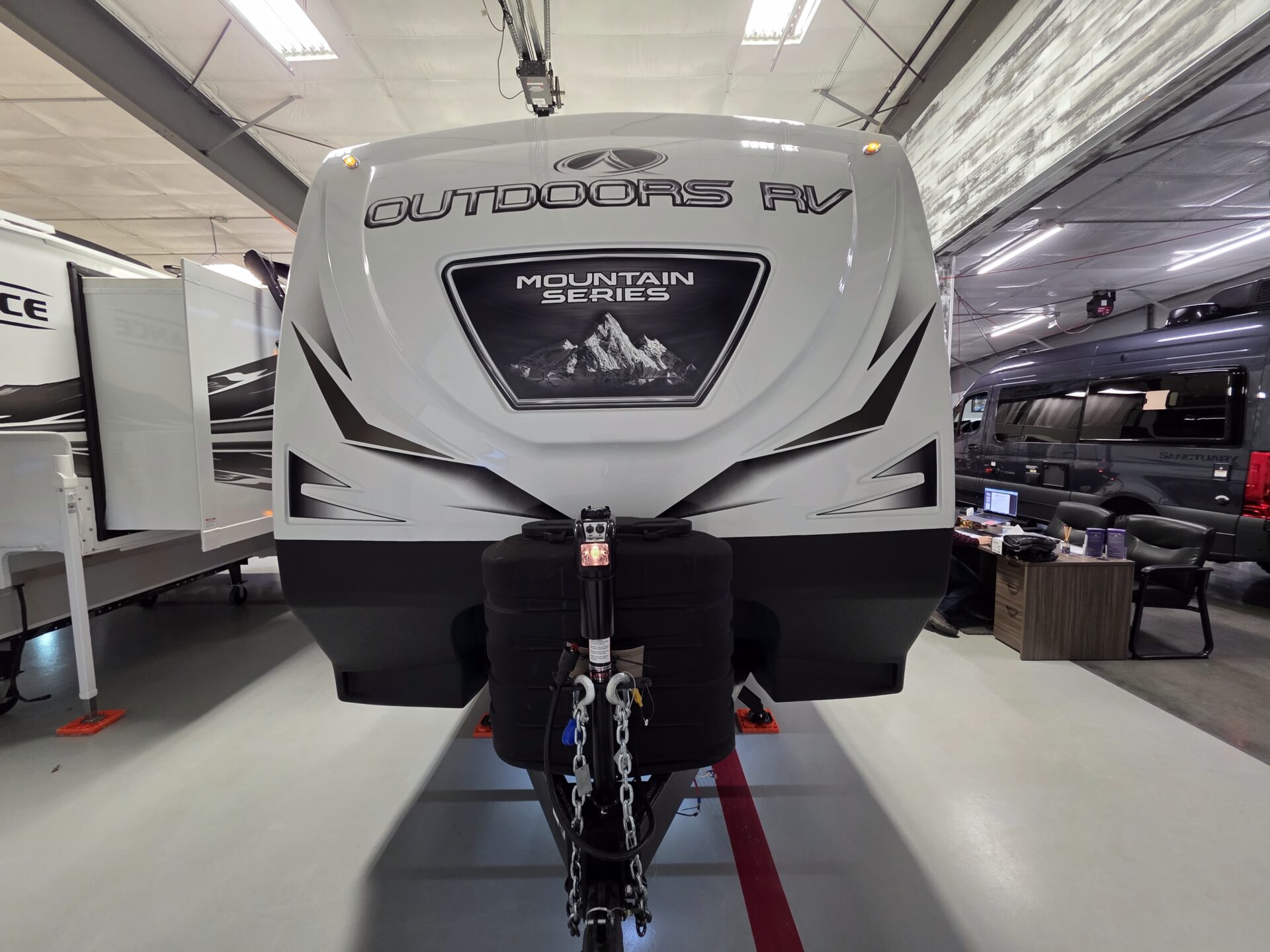

*All New Rugged Fiberglass Front Cap w/ Lower Armor Guard Rock Protection
*HD Laminated Fiberglass Hardwall – Front, Rear, Side, & Slide-Out Walls
*Eco-Friendly Laminated Wall CutOuts in Dinette – 40% Thicker Cushions
80 Gallon Fresh water Capacity
Custom-Built Cambered Off-Road Chassis
Underslung Off Road Hitch
Integrated A-Frame Chassis Construction
*Xtra Tall 24″ Power Tongue Jack w/ LED Light

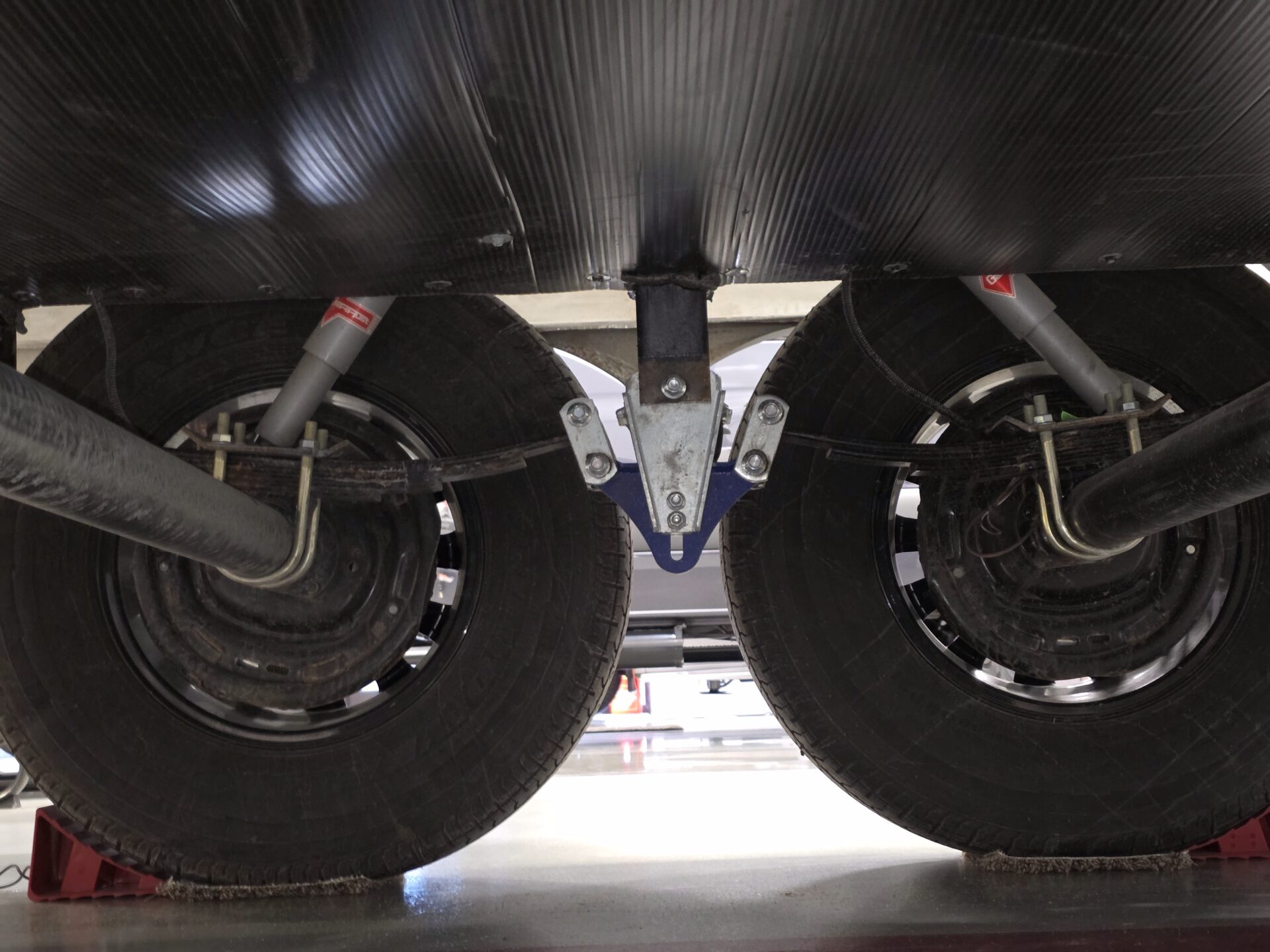

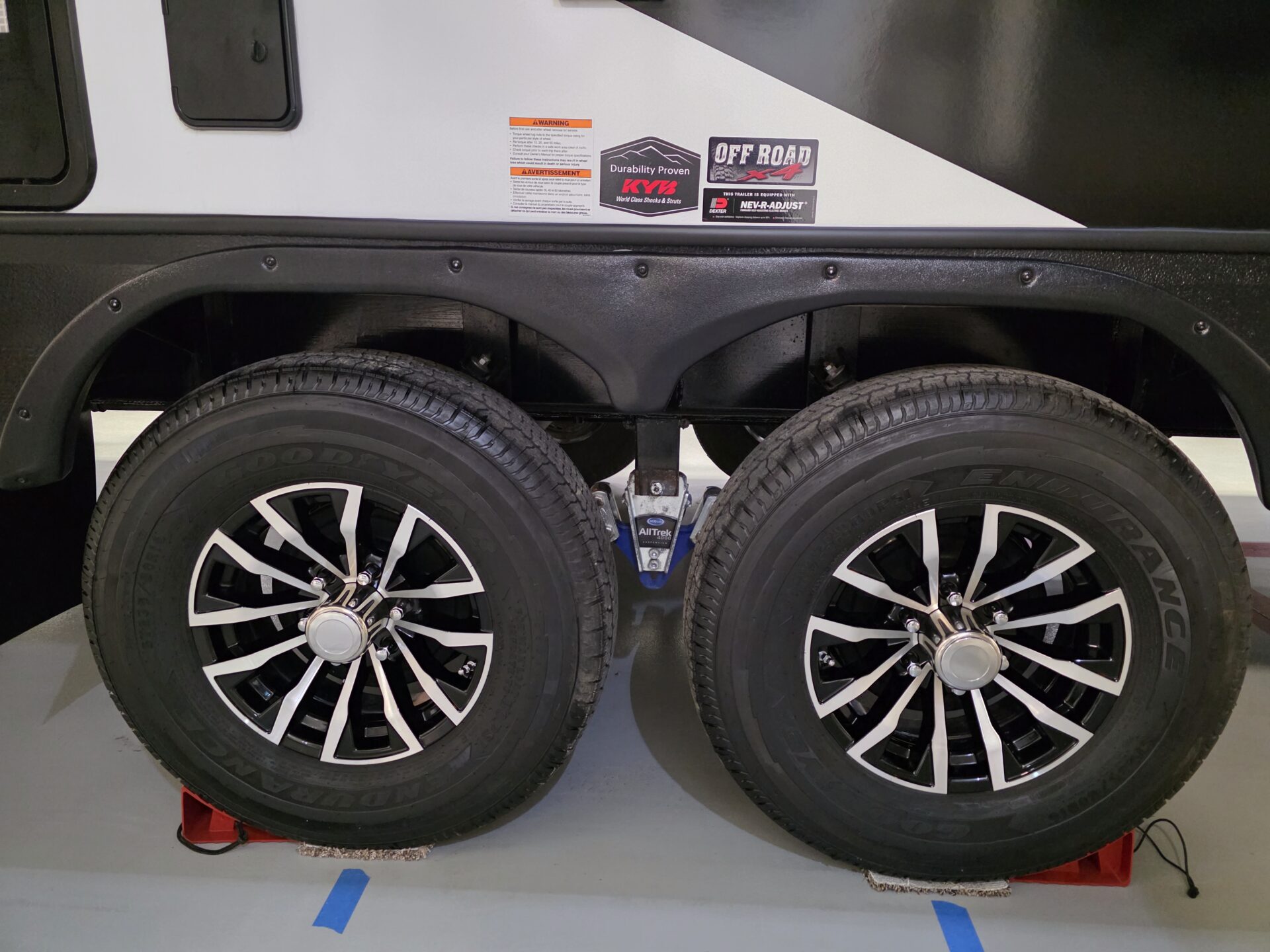

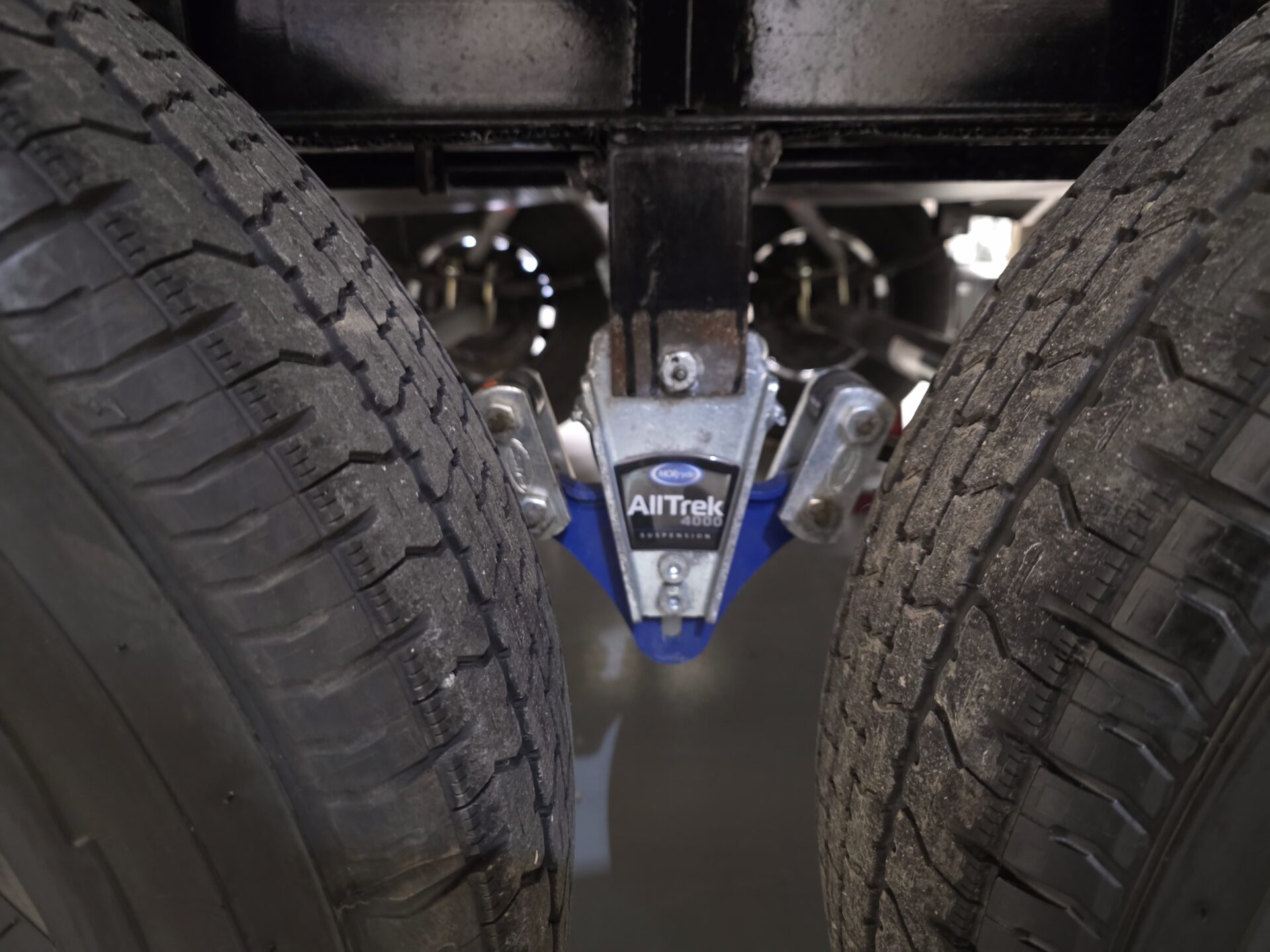

*Off Road X4 Suspension – MorRyde AllTrek 4000, HD Shackle Kit
*KYB World Class Shock Absorbers
*15″ Rugged Mud Flaps
*Rugged “Armor Guard” XL Protected Bumper
*Heavy Duty 5 Lug 5100 LB Axles w/ Off-Road Brake System (All Models)
*16″ GoodYear Endurance 235 E Range 10 Ply Radial Tires (Safety/Warranty)
*Laminated Fiberglass Slide-Out Floor (Slide-Out Models)
*Laminated Aluminum Frame Slide-Out Ceiling (Slide-Out Models)
*Roto-Torqued “Outdoors Tough” Cabinetry (All Cabinets)
*Off-Road Clearance Lights

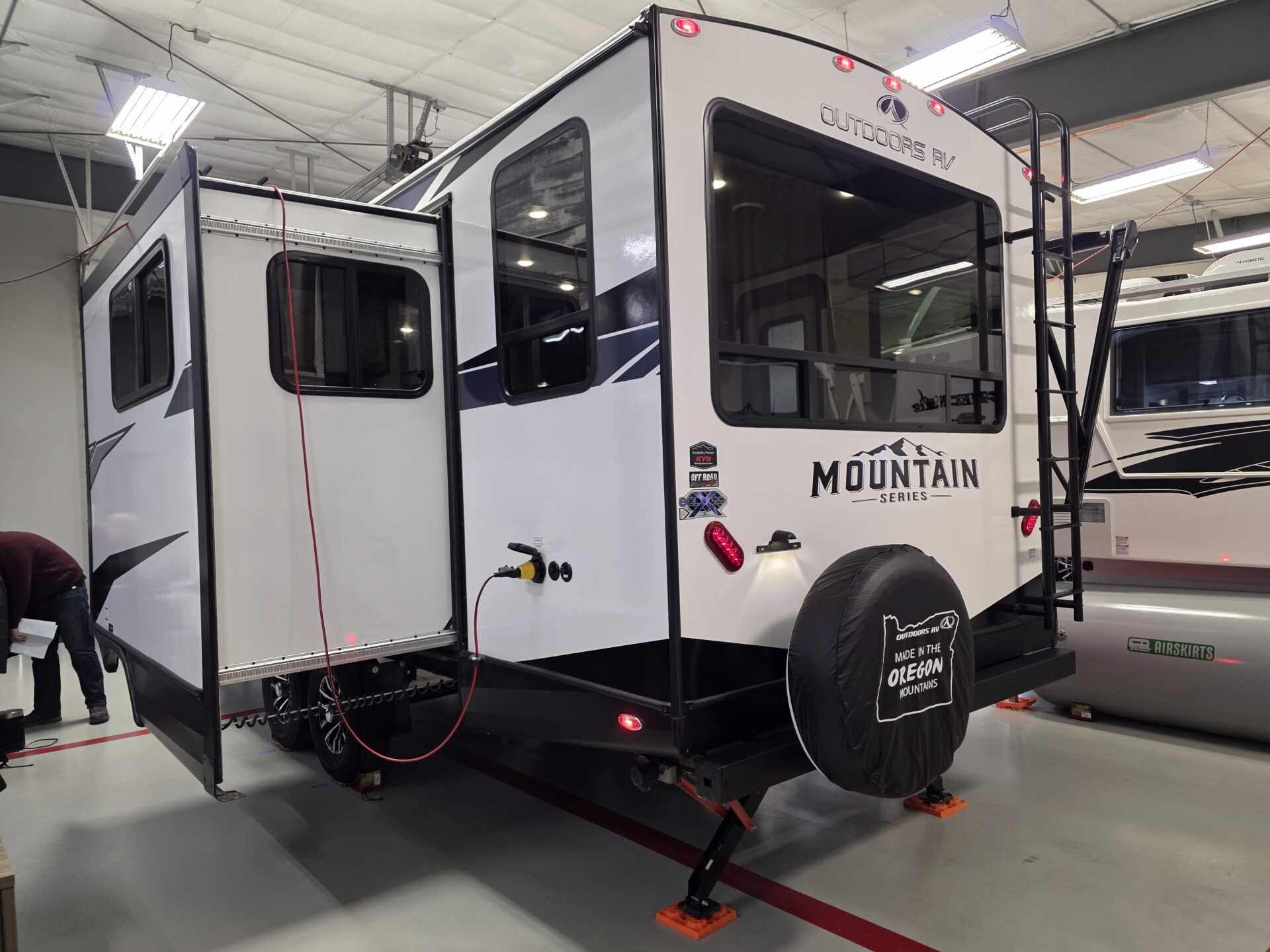

*Radius-Crowned Full Walk-On Roof w/ HD Big Tube Rear Ladder
*Exterior Grade Tongue & Groove Plywood Sub-Floor
*Marine Grade Plywood Roof Decking
*Full Extension 100lb Metal Drawer Guides

Specifications

Full Feature Dry Weight – Lbs.	7100 (TS 7580)
Exterior Length (approx. hitch to back of ladder)	31’4″
Fresh Water Capacity (approx. gal)	80
Water Heater Capacity (approx. gal)	10
Good Year Tire Size	ST235/80/16E
Load Range	E
Heavy Duty 6 Lug Axles (lbs)	5200(2)
Climate Designed Furnace	35K
Exterior Height	11’7″ w/AC
Interior Height	6’11”
LPG Capacity (approx. pounds)	60
Grey Water Tank (approx. gallons)	50
Black Water Tank (approx. gallons)	40
Net Carrying Capacity	2895
Dry Hitch Weight (approx. Lbs.)	720
Maximum Trailer Weight – Lbs.	9995
